Upgrade the original taillight housings on your 1970–1973 Chevrolet Camaro with DIGI-TAILS LED panels. Choose the kit below to keep the factory reverse lights, convert all four lamps to red lighting, or add LED reverse lighting.
Choose your kit
| Kit |
Part number |
LEDs per side |
Reverse lighting |

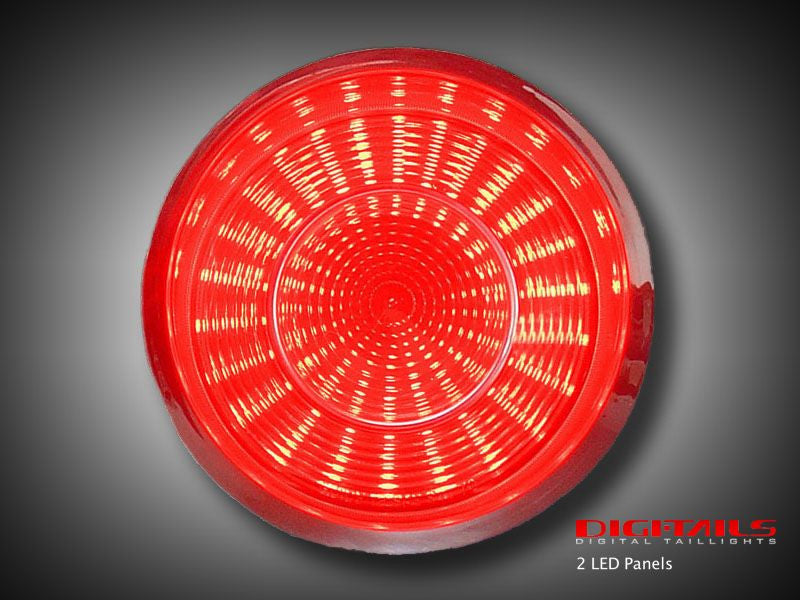

| 2 LED Panels |
DT1100170 |
60 red |
Factory reverse lights retained; no LED reverse panels included |
| 4 LED Panels — Reverse Deleted |
DT1100270 |
120 red |
Reverse function removed |
| 4 LED Panels — LED Reverse |
DT1100270R |
60 red + 48 white |
White LED reverse lighting included |
Each kit serves both sides of the vehicle. A switch on the boards selects sequential or standard operation. DT1100170 and DT1100270 use a circular brake and turn pattern; DT1100270R sweeps from the inside toward the outside.
Included
The selected two- or four-panel set, power wiring, pigtail harnesses, terminals and grommets. DT1100170 and DT1100270 also include mounting hardware, instructions and a mounting template.
Installation notes
- LED panel conversion kit only. Housings and lenses are not included.
- The four-panel reverse-delete option removes the factory reverse function.
- If both the front turn/parking lights and rear lights use LEDs, DIGI-TAILS specifies two electronic LED flashers for the turn signals and hazards.
DT1100170 / DT1100270 installation instructions
DT1100270R installation instructions
