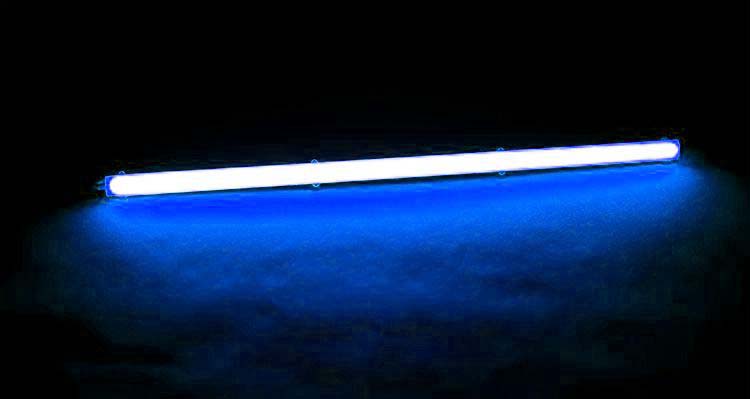

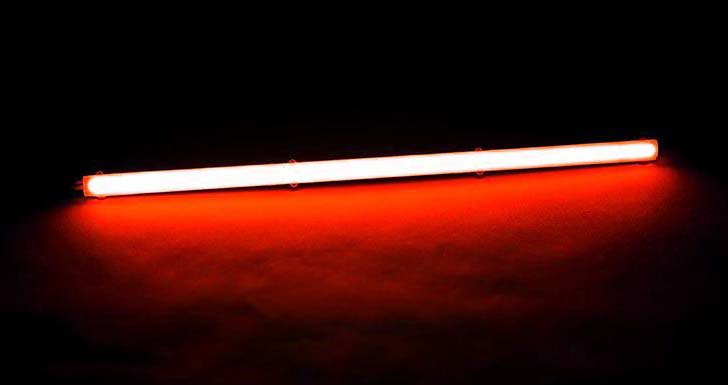

Universal HDR Single Color/Switchback Strips

Universal HDR Single Color/Switchback Strips


$40.00


Introducing Diode Dynamics Universal HDR Single Color/Switchback Strips! The brightest, most uniform strips to hit the market!

HDHalo Technology: These standard-sized strips feature all the benefits of our exclusive HDHalo technology, including:
- Proprietary durable phosphor coating, to create uniform, solid appearance.
- Extremely bright, high-density LEDs that are visible even in direct sunlight.
- Multi-function PWM drivers, fully waterproof, featuring low power, high power, and turn signal modes.

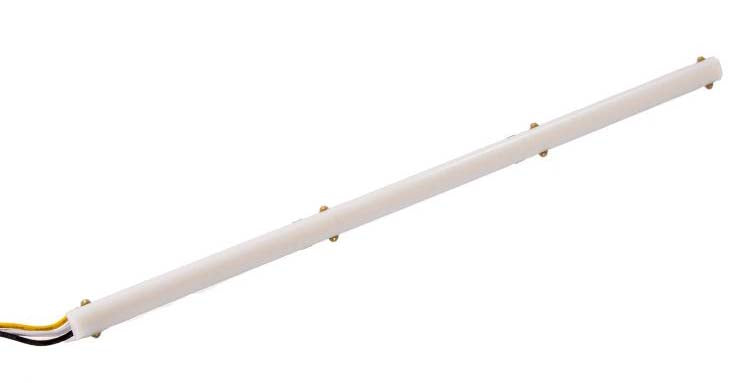

- Integrated mounting tabs for easy installation.

Your order includes one strip, one driver, a pigtail for easy wiring, and four T-tap connectors.

Sizing: All sizes are listed by total length, in millimeters. Strips can be shortened by up to 20%, but no less! Width is 8mm, and total height is 4.5mm.

Wiring: All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.

PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these strips is the integrated multifunction PWM dimming control. The drivers have four wires, to be connected to any 12V signals as follows:

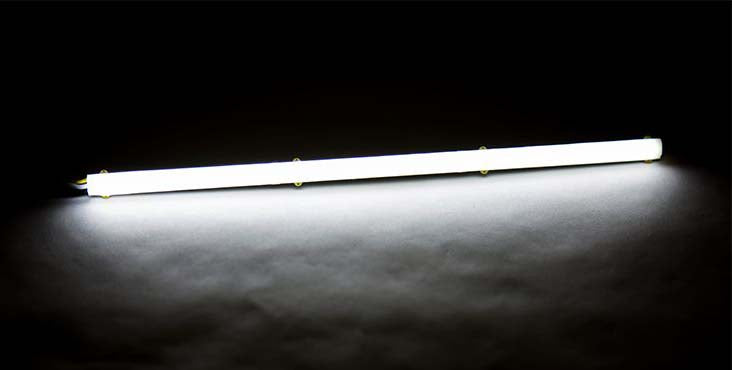

White: White Low Power, 50% brightness
Red: White High Power, 100% brightness

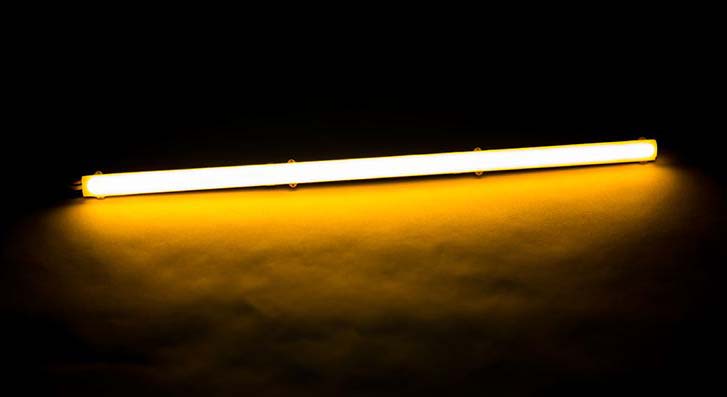

Yellow: Amber Signal, 200% brightness flashing (dims if powered more than two seconds)
Black: Ground

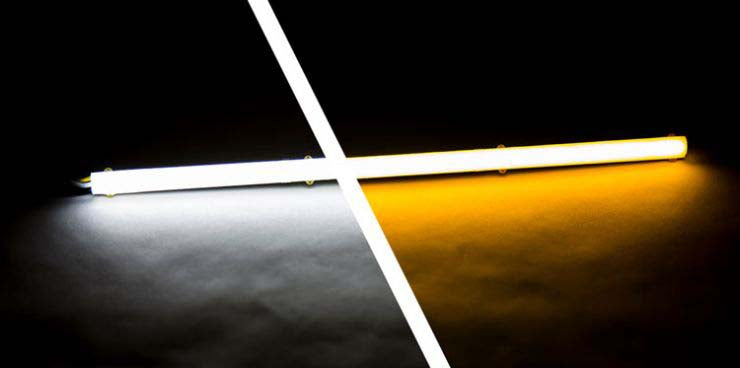

All input wires activate the strip, at different brightness levels. All switchback strips ship with "low" priority drivers. This means that if both "low" and "high" power inputs are powered, the LED will light up in white, with low power level. This is convenient for connecting the red wire to a parking light or DRL signal, for use during the day as a high-power DRL. Then, if the white wire is connected to the headlamp power, they will dim down at night. If the yellow wire is powered at any time, the strip will light up in amber color, intended for signaling. If you'd like to use amber all the time, no problem! It will dim automatically if powered for more than two seconds, to keep it safe.

This entire setup allows you to connect the strip directly as a multifunction lamp, without no external controllers needed. Of course, this is completely optional. You can just use one or two of the input wires if you'd like.

Electrical Specifications:
Input Voltage: 9-16V
Input Power: Dependent on size, generally one watt per inch in "high power" mode
Total Light Output: Dependent on color and size. They're bright! Please contact us for exact measured output figures.

Installation: If you are using these lights in headlights or tail lights, professional installation is strongly recommended, as lamps must be opened for installation. The strips must be custom-mounted in position using adhesive or beading wire using the integrated mounting tabs. If you wish, mounting tabs may be removed with a pair of clippers or basic sanding.

All Diode Dynamics products are backed by a 3-year replacement warranty.
