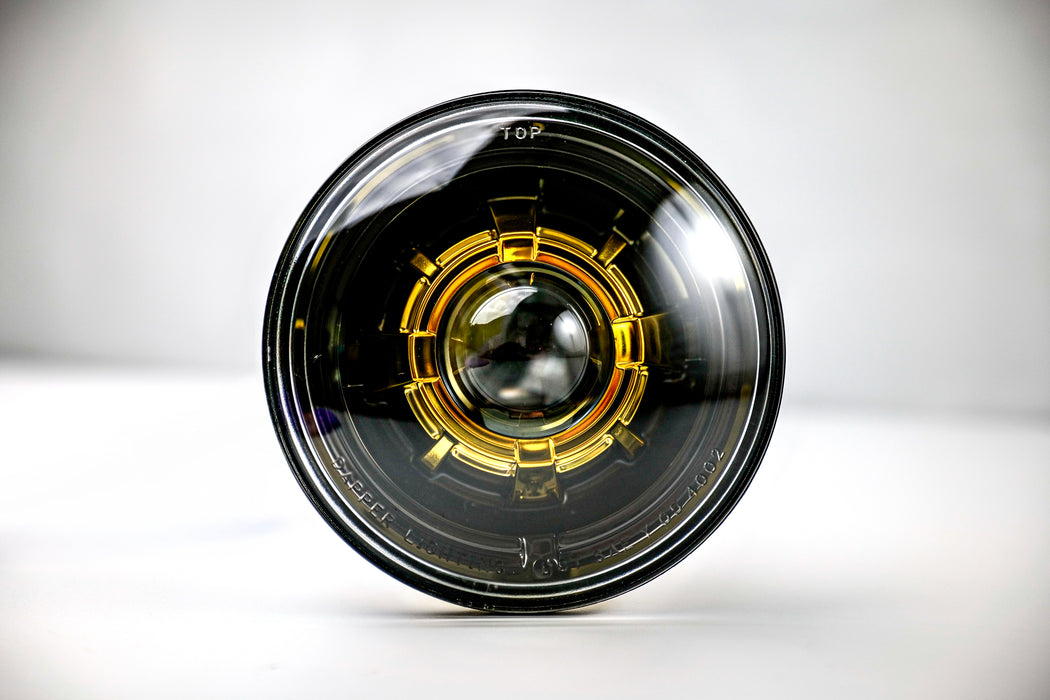

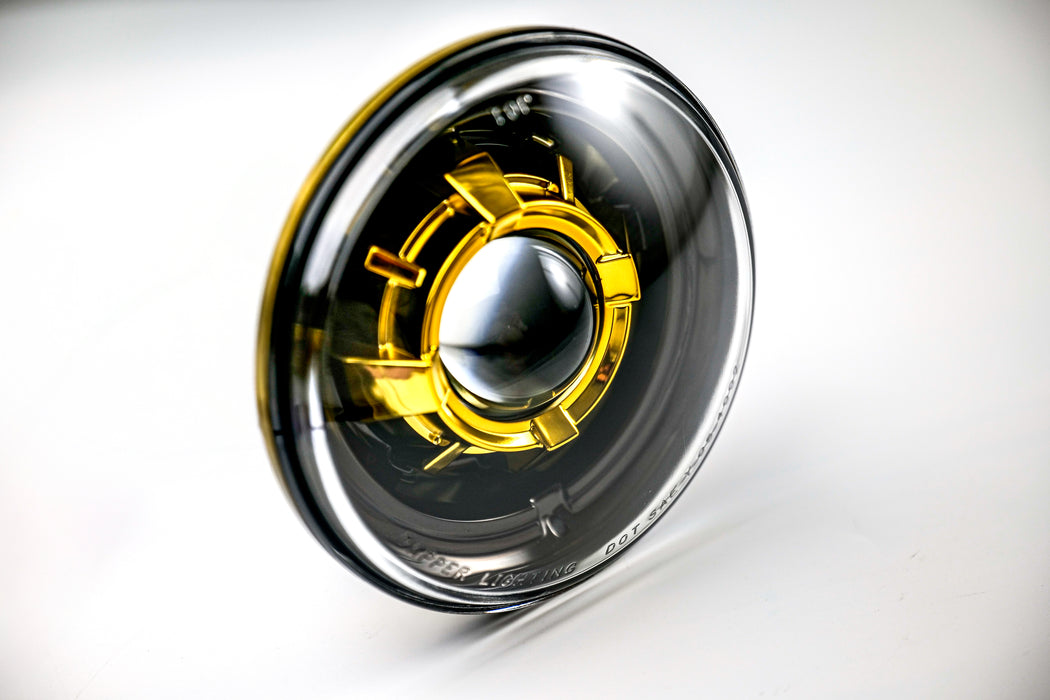

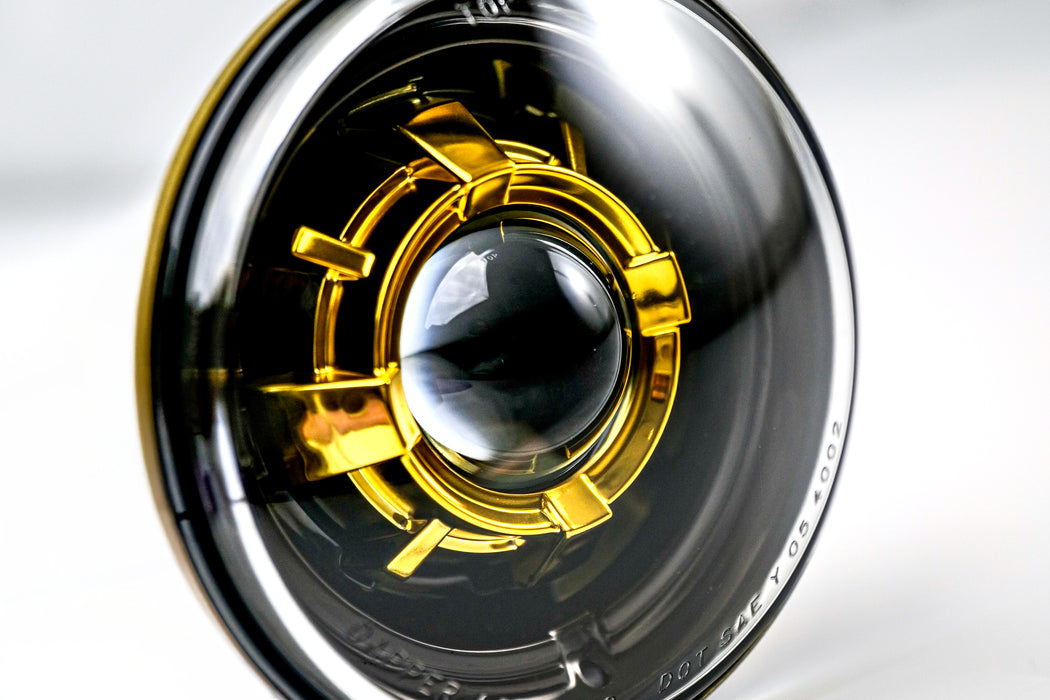

575 Limited Edition – Gold Shroud / Black Housing
Limited run of 4 units
Sold as a single unit.
This limited-edition version of our 575 headlight combines a black-painted housing with a custom gold internal shroud, offering a look you won’t find in our standard lineup. We produced only four units in this run, and once these are gone, we do not currently have additional units available.
Every light in this batch is built as a full high/low beam projector, providing modern functionality in a compact, classic-friendly form factor. Each unit includes the full plug-and-play wiring setup, so installation is straightforward with no additional components needed. They come equipped with our 30W LED bulbs, giving you strong, efficient output right out of the box.
These limited units are offered only in clear glass and do not include a halo option, keeping the design clean and focused on the gold-on-black finish.
Just like the rest of the 575 series, this model uses the slimmest 5.75" projector design we make. The projector system creates a sharp, consistent beam pattern that improves nighttime visibility without excessive glare. With the included LEDs, you get a bright, controlled light with far less power draw than traditional sealed-beam headlights.
Every unit is hand-built in the USA and backed by our 5-year warranty. If you ever need support, you’ll be talking to people who know these lights inside and out and who understand the vehicles they’re built for.
This limited-edition finish adds a distinctive look to the proven 575 platform offering reliable performance, modern lighting, and a small-batch aesthetic for builders who want something different from anything else on the road.
Plug and Play- Our included adapter plugs right into your factory headlight harness for easy installation
Performance– Over 2.5x the lumens of a standard sealed beam (with upgraded 30W LEDs)
Glass Lens– Glass lens to prevent UV fading and dulling
No Glare– Featuring a custom designed projector, the flat razor sharp light no glare output ensures you aren’t blinding oncoming traffic
Four High– The inline wiring harness automatically enables all four lights for high beams
Low Power / High Output– The optional LED Optical unit provides the balance between brightness, heat dispersion, and reliability
Modular– Replaceable components ensure a long lasting, serviceable, and upgradable headlamp
Low Beam Direct Replacement
for: 5006
High Beam Direct Replacement
for: 5001
High/Low Direct Replacement
for: PAR46, H5006, H5001
Halogen:
Color Temp (CCT): 3000K
Power Halogen (watts): 55W
Current (amps @ 12.8V): 4.3A
Cooling: None
13W LED:
Color Temp (CCT): 6000K
Power Halogen (watts): 13W
Current (amps @ 12.8V): 1A
Cooling: Passive Fin
30W LED:
Color Temp (CCT): 6000K
Power Halogen (watts): 30W
Current (amps @ 12.8V): 2.3A
Cooling: Active
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): H11/H4
Materials: Borosilicate Glass Lens, Polymide Nylon 66 Housing, Rubber Gasket
Product Dimensions (in): 14x11x7
Unit Weight (lb): 2.0
Shipped Weight (lb): 2.5
⚠️California Proposition 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.
For more information: www.p65warnings.ca.gov
Specifications/Dimensions Sheet for High/Low Beam Gold/Black 30W LED 575:
You can find a complete list of Manuals/Guides below
Installation Guides
X 1
SINGLE UNIT
